Description

Model		ATTO – 3
Main vacuum chamber		Square front door structure, size: ø300 X 400mmmm;
Sample room (optional)		Open door structure, the size is about ø200 X 300mm
Vacuum system configuration	Main vacuum chamber	Compound molecular pump, mechanical pump, pneumatic gate valve
Vacuum system configuration	Sample room	Mechanical pump, molecular pump, valve
Ultimate pressure	Main vacuum chamber	≤6. 67×10-5pa(After baking and degassing)
Ultimate pressure	Sample room	≤6.67X10-4 pa(After baking and degassing)
Recovery vacuum time	Main vacuum chamber	6. 6×10-4 pa Pa can be achieved in 30 minutes((The system is exposed to the atmosphere for a short time and filled with dry nitrogen to start pumping)
Recovery vacuum time	Sample room	6.6×10-3 Pa can be achieved in 30 minutes(The system is exposed to the atmosphere for a short time and filled with dry nitrogen to start pumping)
Magnetron target assembly		2-4 sets of permanent magnet targets; target size ø60mm (one of which can be sputtered magnetic material); each target is compatible with RF sputtering and DC sputtering; water cooling inside the target; three targets can be folded towards the center of the sample above The distance from the sample is 90 ~ 110mm; each target is equipped with a pneumatic baffle.
Substrate heating stage	Sample size	ø2 inch
	Exercise method	The substrate can rotate continuously, Rotating speed 0-30rpm
	heating	Substrate heating temperature 600℃±1℃
	Bezel form	Imported SMC corner cylinder control
Process gas system		Mass flow controller 2-4
* Optional parts	Injection chamber magnetron target assembly	Permanent magnet target, target size ø 60mm。
	Thickness meter	Domestic / import

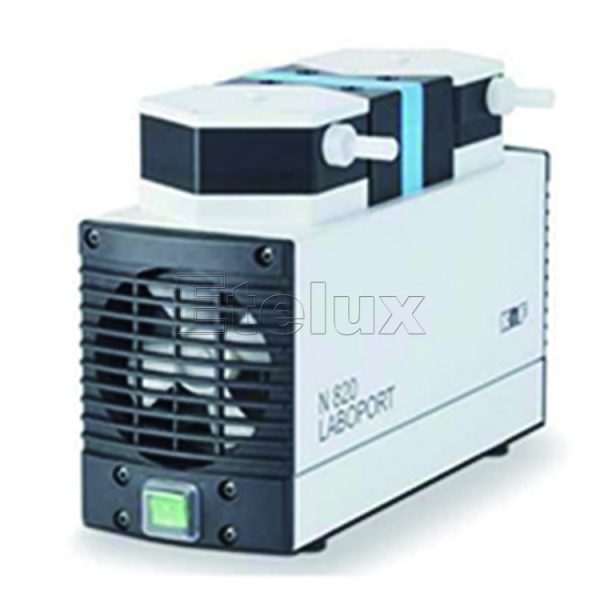

	Quiet air pump	Oil-free lubrication
	Computer control system	Automatic control, process reading, parameter setting, real-time monitoring and other functions
Equipment Area	Host	1800X1200mm2
Equipment Area

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ATTO3 – Thermal Evaporation Thin Film Deposition System”

Why Choose Us

When you select Etelux Solutions as your technology provider, you'll be placing your Glovebox& Vacuum Coating Equipment infrastructure in the hands of experienced, trained professionals. We take a different approach and the results are clear. People love our team and the services we provide.

Rich Glove Box Experience

We have more than 16 years of glove box manufacturing experience and have been awarded 35 technical patents.

Strong Research & Development Team

Our R & D team is committed to innovative technology. Through comprehensive international technical exchange & collaboration and through continuous application of cutting edge engineering and manufacturing techniques we create “state-of-the-art” products and customized solutions to serve the diverse needs of our client base.

Strict Quality Control Standards

We have deployed an ERP system that vigorously and systematically controls, tracks, and monitors the fulfilment process from placement of an order through design, manufacture delivery, installation & commissioning, and post-sale service.

Advanced Production Equipment

Gantry Machining Centers, CNC Turning Centers, Welding Robots, CNC Press Brake, Laser Cutting Machine and Helium Mass Spectrometer leak detection are among the equipment we use every day to produce our glove boxes. These facilities and equipment not only ensure the consistency of the products, but they also enable us to shorten the prototyping cycle of new product R & D and product customization.

Client Service

The key to our client service is our seamless integration of deep industry and functional expertise with tools and capabilities to support execution and make change happen—on a global scale.

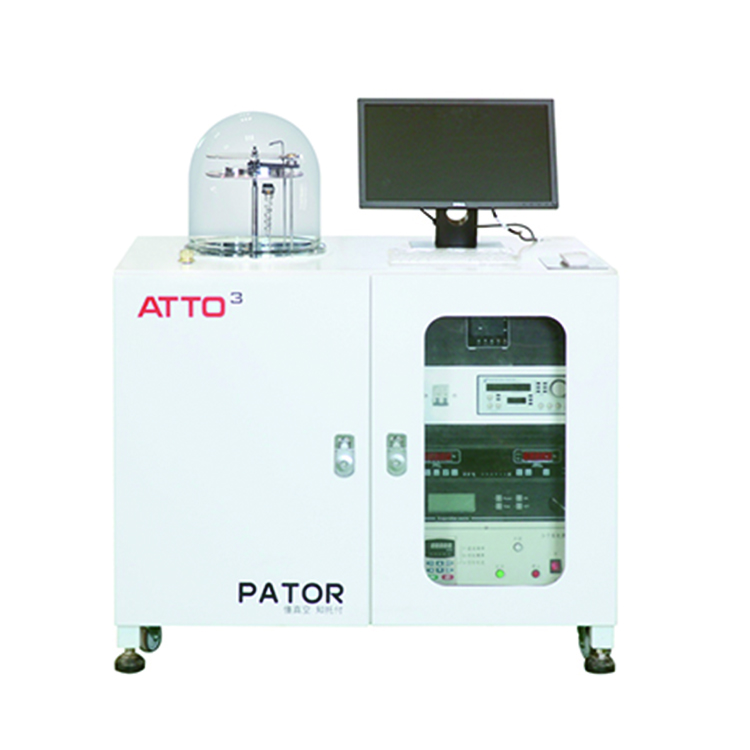

ATTO3 – Thermal Evaporation Thin Film Deposition System
