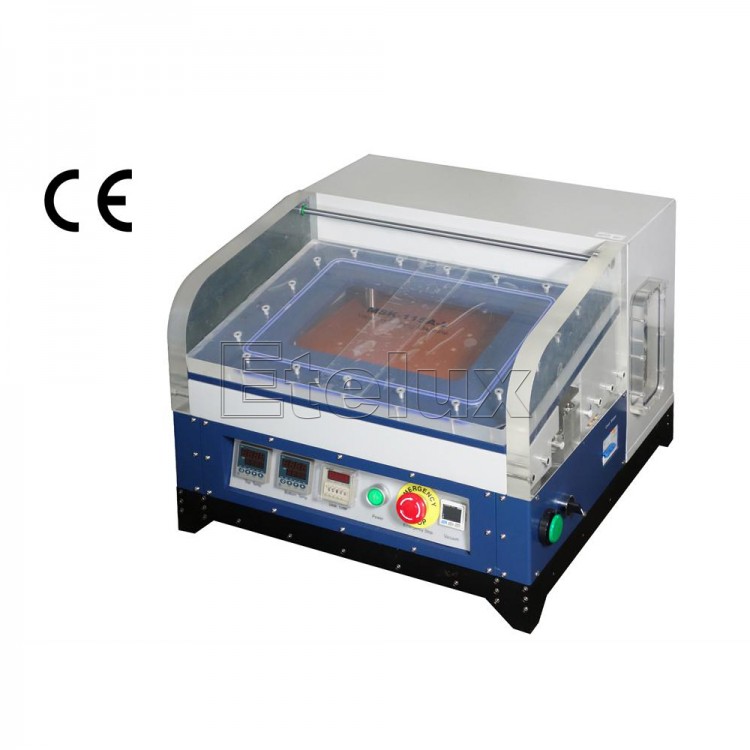

MSK-115A-L Secondary Vacuum Final Sealer



Product introduction:

MSK-115A-L secondary vacuum final sealing machine can be applied to the vacuum pre-sealing and secondary vacuum final sealing processes of flexible packaging lithium batteries. This machine is compact in design, can be placed in the glove box for operation, and can realize many functions such as vacuuming, piercing and draining, heating and sealing. The working chamber of the equipment maintains a good degree of vacuum, excellent sealing effect, and good battery flatness.

Factory Price, Hige Quality

Description



Features:

It is also used for pre-sealing and final sealing of soft-pack batteries, and has a wide range of compatible battery sizes;

The vacuum is maintained well to ensure the moisture content of the finished battery;

Adopt soft sealing method, good temperature uniformity, high package consistency and long service life;

Needle piercing and piercing function to discharge excess electrolyte from the battery;

The overall design is compact and can be used in ordinary glove boxes;

When used in a glove box, it is recommended to use an inert gas to prevent contamination of the glove box;

Electrical control and structural standard modular design, easy maintenance;

Technical Parameters

Power Single-phase voltage 220VAC ± 10% (110VAC can be customized), frequency 50Hz / 60Hz, power 1.5KW
Gas source 0.5~0.8Mpa Compressed air or inert gas
Sealed head temperature The upper and lower sealed heads can reach up to 300 ℃, the upper sealed  head is recommended to be 200 ℃, and the lower sealed head is recommended to be 160 ℃.
Temperature control accuracy ±2℃
Upper and lower die parallelism better than 0.03mm
Battery size Max. L380*W340*H12mm
Edge width Standard 8MM, can be customized
Sealing length Max. 380mm
Sealing pressure By air pressure adjustment
Heat sealing time 0 ~ 99s adjustable, recommended setting is 3-4s
Piercing method Metal puncture needle
Vacuum degree Adjustable, up to -95Kpa
Work circle ·         Air pressure ≥180 times /h
Air consumption About 0.2L compressed gas / per seal
Dimensions L574*W500*H423mm; L22.6*W19.7*H16.7inch
