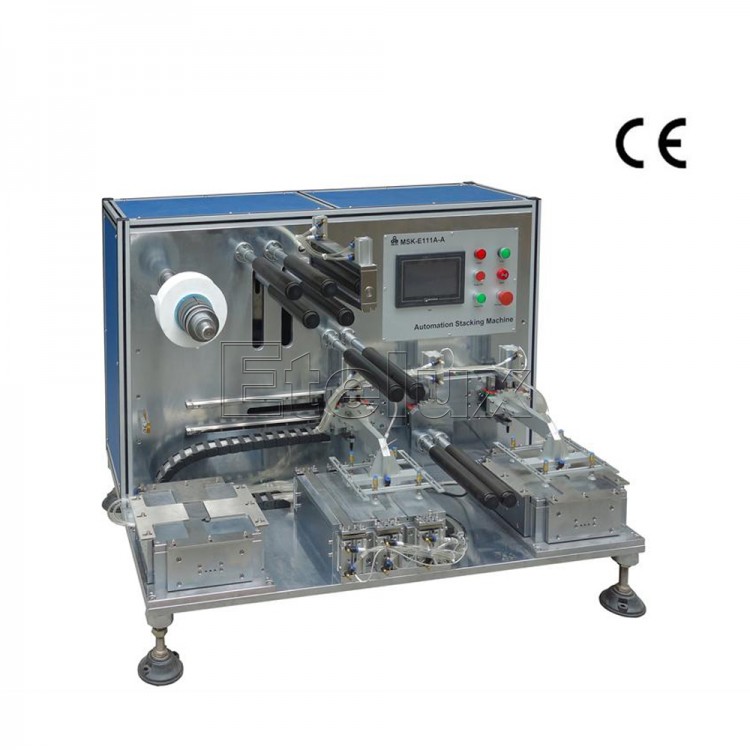

MSK-111A-E Semi-automatic Lamination
Factory Price, Hige Quality
Description
Product introduction:
MSK-111A-E automatic laminator is a device that can be applied to the lamination process of lithium ion battery pole pieces. The equipment adopts a single cantilever structure design, automatic constant tension control of the roll insulation film, and the motor drives the diaphragm to move left and right to achieve a zigzag lamination. This equipment realizes the manual loading, subsequent pole piece position correction and lamination process by using fully automatic. It has the characteristics of high lamination efficiency and high lamination accuracy. The device design can stack a maximum of 200 * 200mm cells, and different sizes can be achieved by adjusting the fixture, which is very suitable for the development and sample production of laminated lithium ion batteries.
Features:
Z-shaped automatic lamination, automatic tension control of isolation film;
Manual loading of pole pieces, automatic positioning, automatic suction of manipulators, automatic stacking;
The isolation film is forced to guide and the pole pieces are mechanically positioned to ensure high lamination accuracy;
The number of laminations can be controlled automatically according to preset settings;
Compatible design, battery size change can be achieved by adjusting positioning fixture, wide adjustment range;
PLC control, HMI operation, easy to use and maintain;
Technical Parameters
| Power | Single-phase voltage AC220V ± 10% (110VAC can be customized), frequency 50Hz / 60Hz, power 1KW |
| Gas souce | 0.5~0.8Mpa Compressed air |
| Use environment | Recommended ambient temperature 25 ± 3 ℃, humidity 30 ~ 90RH, no vibration and electromagnetic interference |
| Lamination method | Zigzag Lamination |
| Operation method | Manual loading, manipulator pick-up lamination, automatic diaphragm drawing |
| Lamination accuracy | Neatness is better than ± 0.5mm |
| Lamination range | Battery Min. L62mm *W46mm，Max. L200mm*W200mm |
| Standard size | Battery L200mm*W150mm |
| Lamination thickness | Max.30mm |
| Laminated layers | Max. 500 can be set |
| Diaphragm roll diameter | Max. 250mm |
| Diaphragm core | 2.3 inch roll core, mechanical clamping |
| Installation size | L1200mm*W800mm*H900mm; L47.2xW31.5xH35.4 inch |
