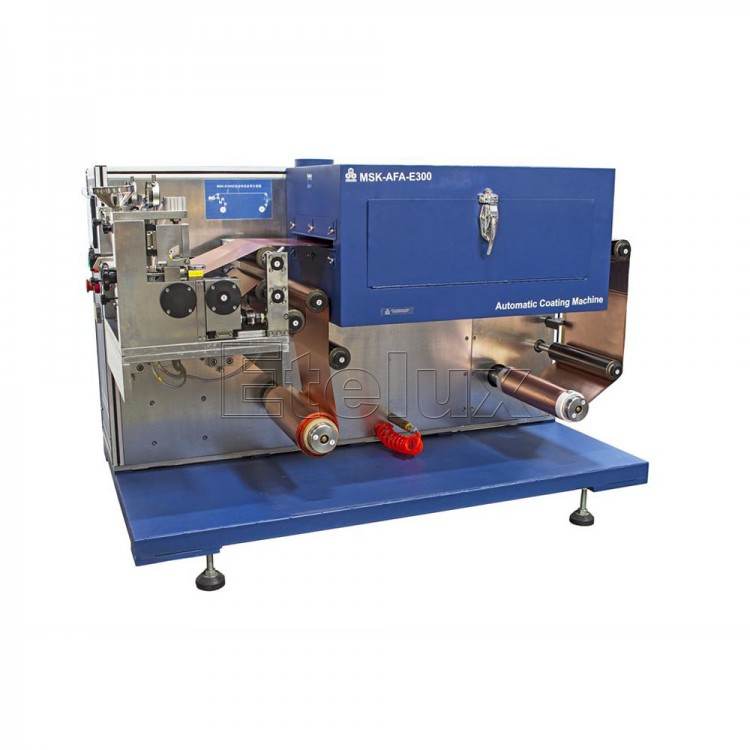

MSK-AFA-EI300 Intermittent Experimental Coating Machine
Product introduction:
MSK-AFA-EI300 batch type experimental coating machine is a three-roller transfer coating equipment that can perform continuous and intermittent coating, which is convenient to apply to equipment for surface coating of various substrates. Especially used in the lithium-ion battery industry, this device is designed for the convenience of researchers, and at the same time meets the requirements of coating accuracy and consistency, which is no different from production. It has excellent drying effect. Ideal for secondary battery development and pilot testing.
Factory Price, Hige Quality
Description
Features:
Three-roller transfer coating with wide coating window;
Comma blade measurement, combined with precision adjustment mechanism, to obtain high coating accuracy;
With stirring tank, can be switched freely to achieve continuous and intermittent coating;
Closed-loop tension control of the substrate, stable transport, rewinding configuration correction device;
Hot-air oven with double-sided blowing on the top and bottom for superior drying effect;
PLC control, HMI operation, convenient and easy to use;
Optional solvent recovery processing device;
Technical Parameters
| Powder | Voltage single-phase AC220V ± 10% (customizable 110VAC), frequency 50Hz / 60Hz, power 5KW |
| Gas source | 0.5-0.8Mpa compressed air |
| Use environment | Recommended ambient temperature 25 ± 3 ℃, humidity 30 ~ 90RH, no vibration and electromagnetic interference |
| Coating type | 800VA |
| Guide roller width | 0~800W adjustable |
| Coating width | 40KHz±10% |
| Mechanical speed | Standard welding mold area: 4 * 4MM comes standard with two sets of welding head welding seats, (used for lithium battery cell positive and negative electrode ear welding) |
| Coating accuracy | For welding pure aluminum strip 0.10mm + pure aluminum foil 0.012-0.018mm within 20 layers |
| Coating thickness | Used for welding pure nickel strip 0.10mm + copper foil 0.012-0.018mm within 20 layers |
| Thickness adjustment | Working part :510*220*290mm; 20*8.7*11.4 inch; Control box :500*190*380mm; 19.7* 7.5*15 inch |
| Coating length | Single piece Max.5000mm, blank 10 ~ 100mm, accuracy ± 0.5mm |
| Drying unit | About standard equipped with hot air drying (customizable infrared drying and UV curing), single section 800mm(31.5 inch) long |
| Drying temperature | Max. 150±5℃，Can be set |
| Tension control | Max. 60N |
| Rewinding diameter | 250mm; 9.8 inch |
| Winding accuracy | ±0.5mm |
| Installation size | L1600mm*W900mm*H1000mm; L63*W35.4*H39.4 inch |
| Weight | About 1t |
