Product introduction:

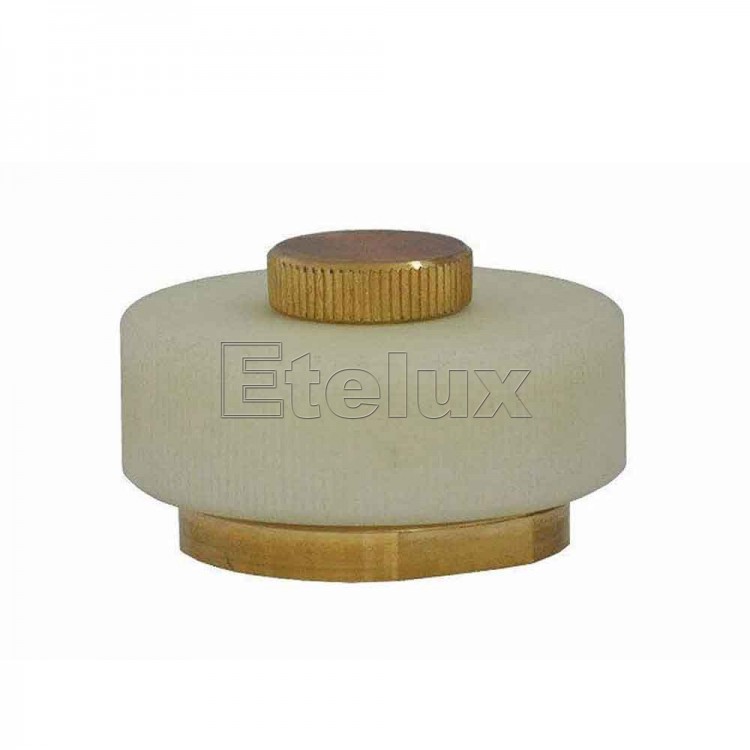

HSTC is a removable battery measurement kit specifically set up for high-throughput methods to study battery materials. Miniaturization and modular design allow customers to assemble multiple battery cells at once and run tests together, thereby greatly improving the efficiency of experiments.

Structure and Characteristics Easy to operate, by manually turning the bottom contact plate and top plunger. No need to disassemble and assemble any screws

Script copper (Cu) is used to make the bottom contact plate and top plunger to ensure good electrical conductivity (if the customer requests, it can be made of stainless steel or script aluminum)

Sealed with fluorine rubber seal

Easy to remove and clean after use

This product has the same function as the “Swagelok” type battery test unit, but also available in different sizes for different sizes of pole pieces or diaphragms

Electrode size Standard is Φ20mm (5.10.12.15.19 and 24, optional)
Arrangement Shelf(optional) In order to test multiple battery cells at the same time, multiple battery measurement kits can be assembled and put into the alignment rack, and the test can be run on the test at the same time.
Withstand temperature Maximum withstand temperature: 100 ℃

Drying boxes can be purchased at our company

Electrode connection plate surface treatment (optional) For better corrosion resistance, the electrode connection plate can be gold plated
Battery tester (optional) Various battery testers can be purchased at our company
