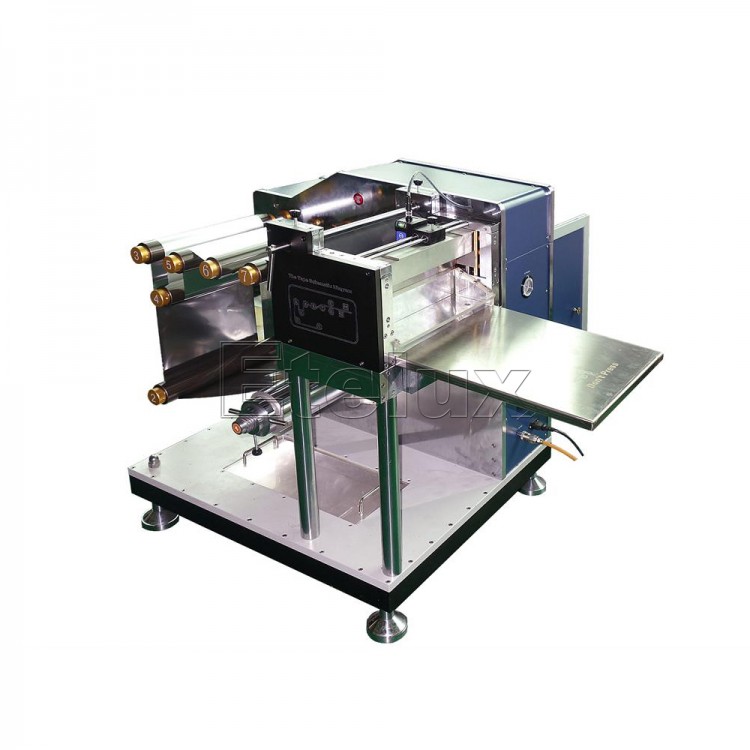

MSK-520 Automatic Cutting Machine
Product introduction:
MSK-520 automatic cutting machine is a cutting device, used for lithium battery positive and negative film cutting. The device has beautiful appearance, small size, good cutting performance, convenient and easy to use, and is ideal for laboratory cutting preparation.
Factory Price, Hige Quality
Description
Features:
Automatic tension of pole piece, the tension can be adjusted;
Continuous cutting, fixed length and cursor tracking are available, suitable for multi-section cutting, and the front and back compensation of the cut can be set;
The whole machine is suitable for large pole pieces with a width of 10-300mm mm and a length of 1-9999 mm.
PLC plus touch screen control, using (Chinese / English) interface for easy operation and strong anti-interference;
Technical Parameters
| Powder | AC220V 50/60HZ |
| Output | 500w |
| Gas Source | 0.5-0.8Mpa Compressed air |
| Cutting width | Max:300mm |
| Fixed-length cutting speed | 1 m/min-5 m/min |
| Glitch condition | ±0.005mm |
| Control tension | Min:10N |
| Unwinding diameter（Max） | 250mm |
| Equipment size | L1151*W715*H914mm;
L45.3 x W28.1x H36 inch |
| Weight | About 300kg |
