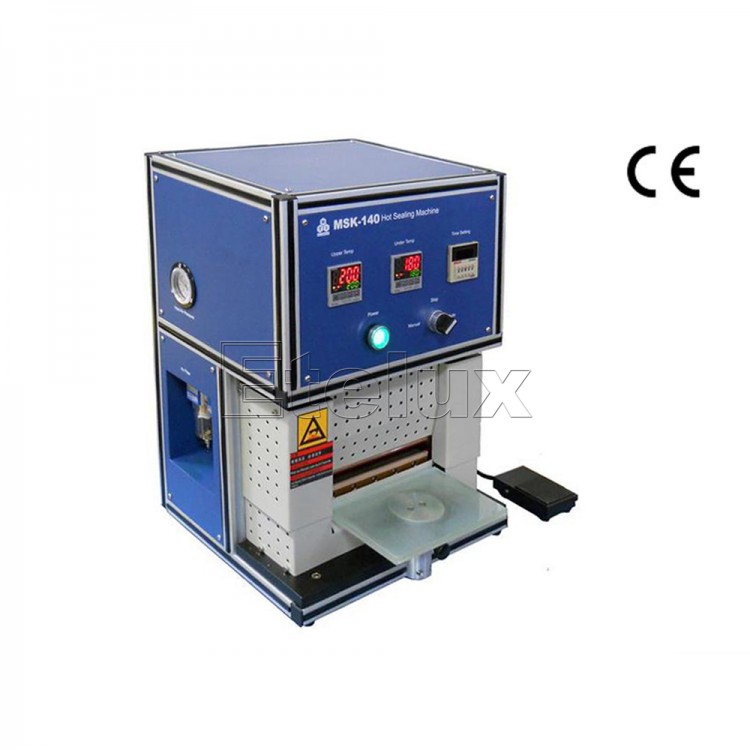

MSK-140L Single Station Heat Sealer
Product introduction:
MSK-140L single station heat sealer is a heating type sealing device applied to the top and side of flexible packaging lithium ion batteries developed by Kejing Company. The device heats the head by resistance to make the aluminum plastic film weld under the set pressure.
Factory Price, Hige Quality
Description
Features:
Single station sealing, switch between automatic and manual mode, excellent sealing effect;
Resistive heating tube heats the head, and the temperature of the upper and lower heads is accurately and independently controlled;
Cylinder thermocompression, pressure adjustable;
Soft-to-hard sealing method, adjustable pressing and holding time;
Countertop design, equipped with operating platform, safe and convenient operation;
Technical Parameters
| power | Single-phase voltage 220VAC ± 10% (110VAC can be customized), frequency 50Hz / 60Hz, power 900W |
| Gas source | 0.5-0.8Mpa Compressed air |
| Edge length | Max. 370mm |
| Edge width | 6mm |
| Edge thickness | 0~0.5mm |
| Upper mold temperature | Max. 300℃，Recommended 200 ℃ |
| Lower mold temperature | Max. 300℃，Recommended 160℃ |
| Sealing time | 0 ~ 99h adjustable, 2 ~ 3s recommended |
| Installation size | L630mm*W440mm*H580mm; L24.8*W17.3*H22.8inch |
| Weight | About 40Kg |
