New Materials

A fluid circulation circuit formed by copper tubing is embedded in the inner wall of the glovebox. Using an external temperature-controlled circulator, the heat-transfer fluid is heated or cooled to a setpoint temperature and then pumped through pipelines into the copper-tube network integrated inside the glovebox. By exchanging heat with the metal panels or internal modules, the copper tubing enables precise local heating and cooling of specific zones inside the chamber, thereby achieving accurate temperature control of the core working area.

An integrated safe power supply provides standard electrical outlets inside the glovebox for devices such as magnetic stirrers, sensors, and small instruments, greatly facilitating internal operations.

In this way, the system simultaneously addresses two key requirements: atmosphere protection and precise temperature control, while maintaining very smooth and user-friendly operation. It is a high-end, fully customized workstation designed for advanced scientific research and fine chemical processing, offering superior experimental conditions for handling sensitive materials.

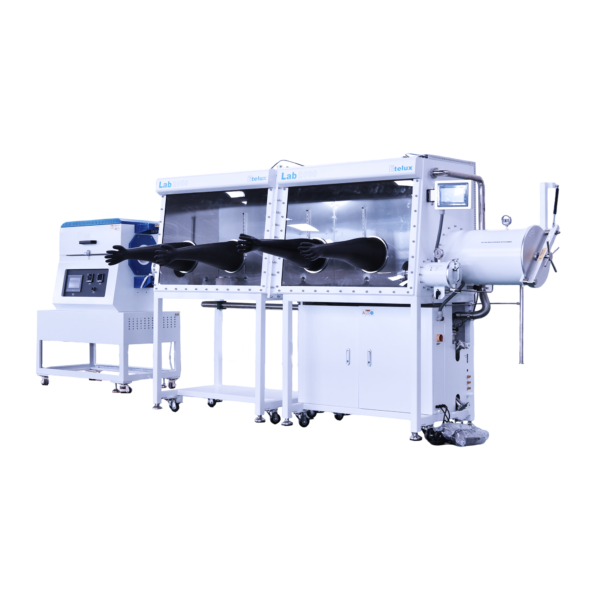

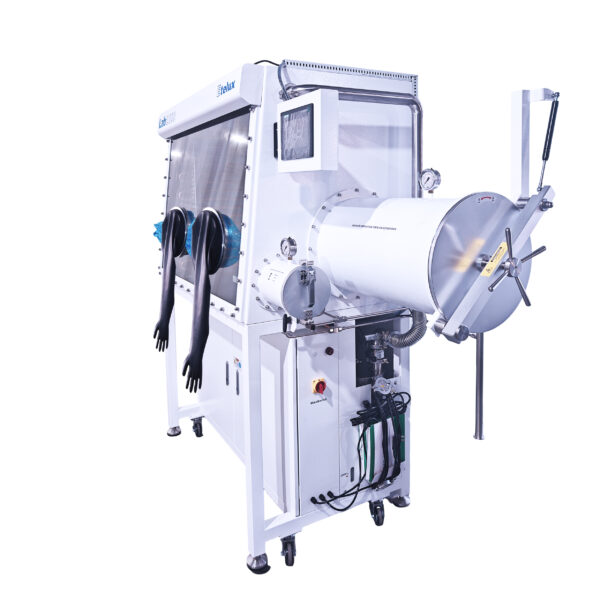

The Etelux integrated tube-furnace single-side dual-station glove box combines a high-temperature tube furnace with a fully sealed inert atmosphere workstation. Samples can be loaded, heated and cooled along one continuous line without leaving the protected environment. The dual glove ports allow two operators to work at the same time, improving efficiency for new-materials R&D and small-scale preparation. This configuration is ideal for solid-state battery materials, functional ceramics, catalyst powders and other air-sensitive samples that require precise thermal treatment under controlled atmosphere.
