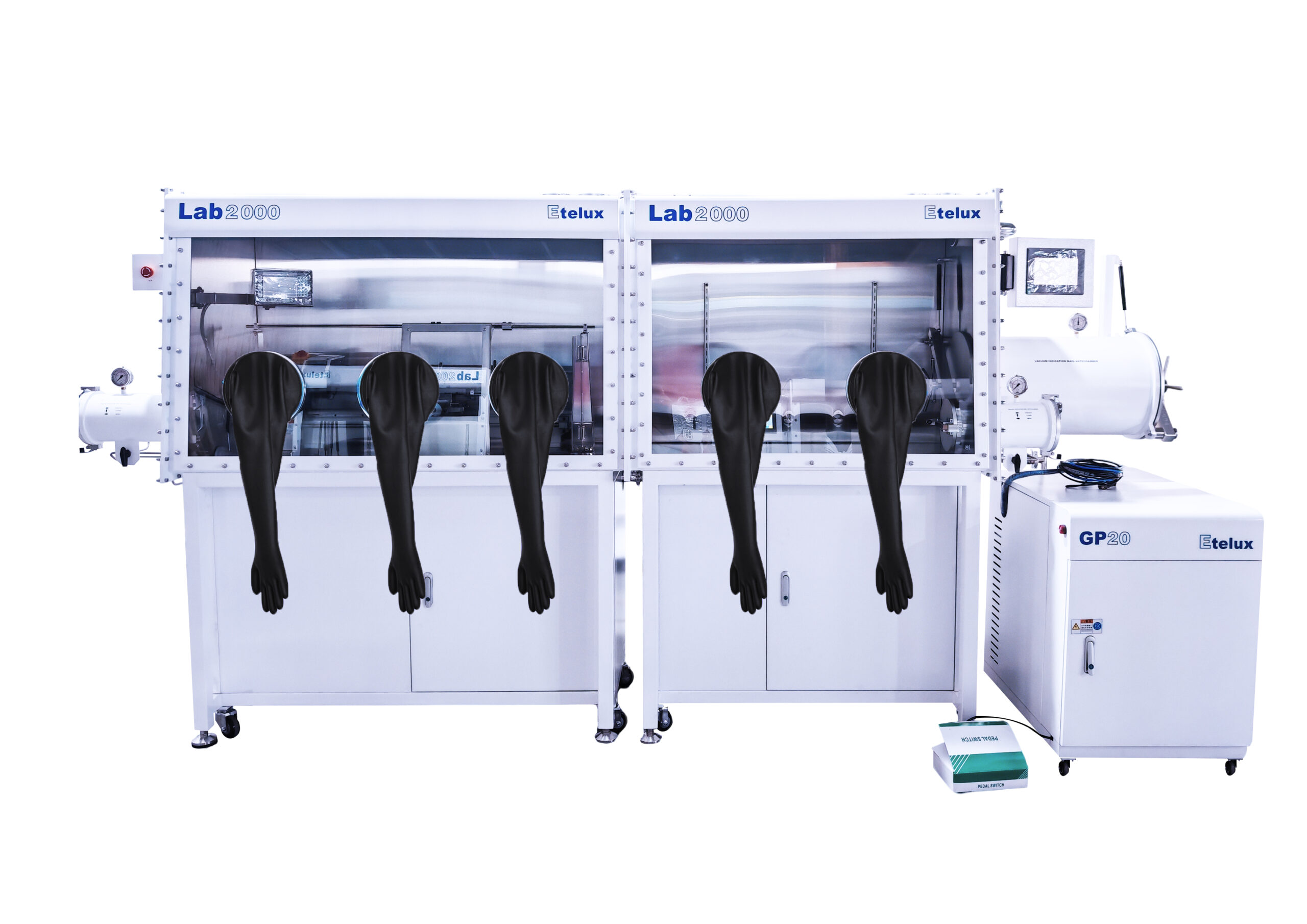

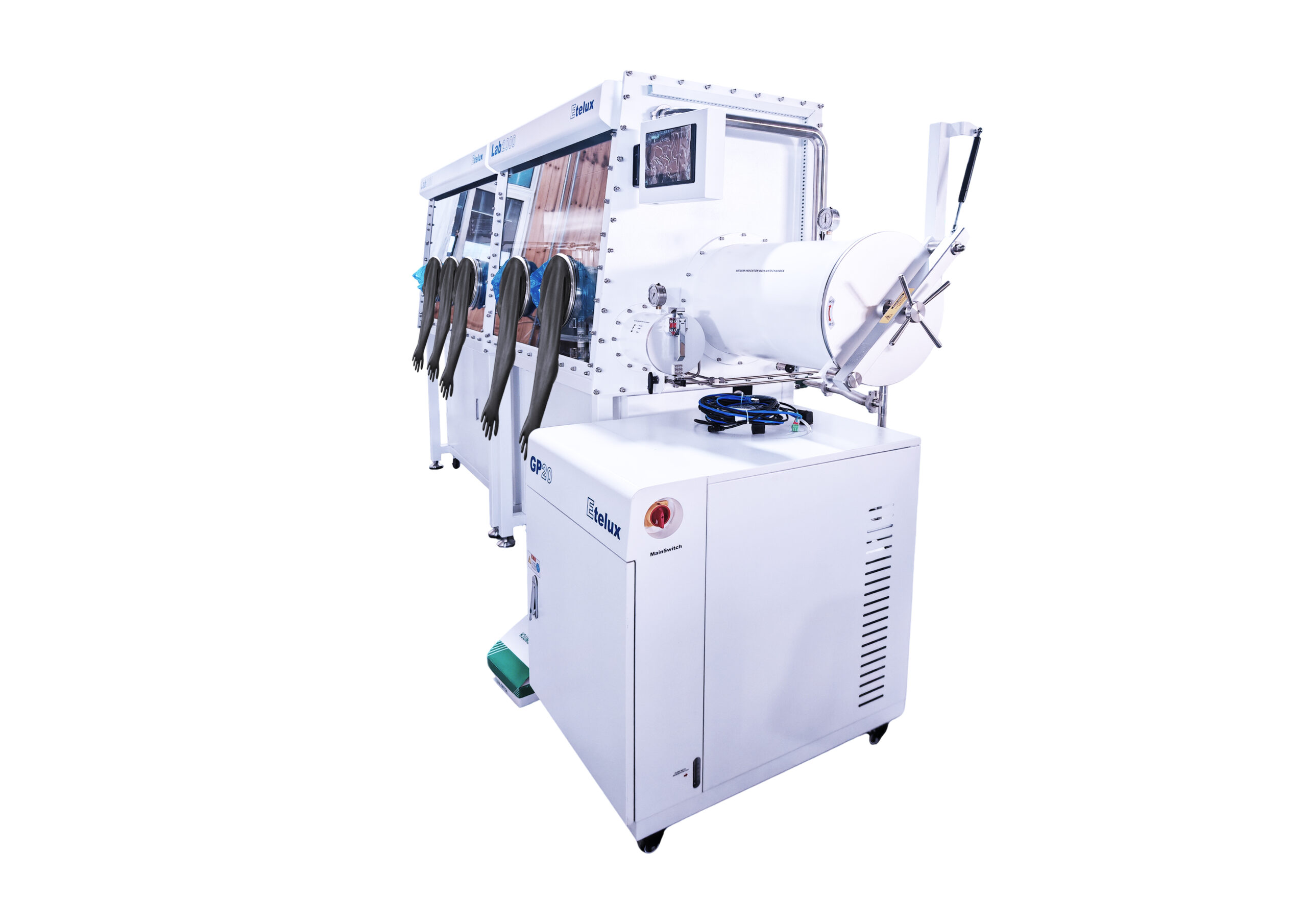

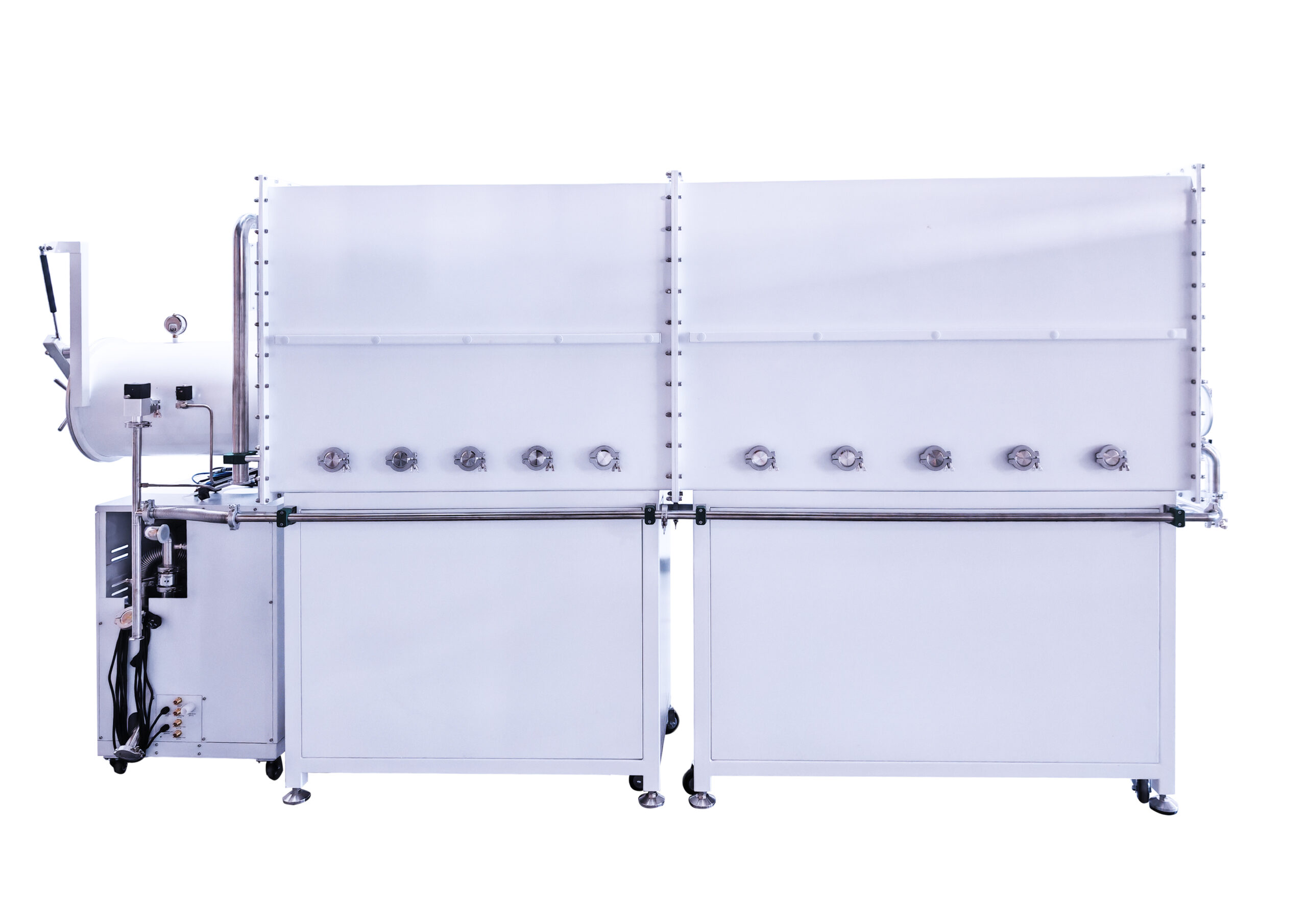

Dual-chamber glove box with integrated material turning and weighing system
This system integrates multiple independent functional modules and glovebox types into a complete solution for special material processing.
The main working chamber features a three-glove-port design, allowing two operators to work simultaneously, which is ideal for coordinated machining, assembly, or measurement tasks. A compact precision CNC lathe or dedicated turning head is installed directly inside the glovebox, enabling operations such as OD turning, facing, grooving, and boring on bar stock under an inert atmosphere.
The lathe spindle, guideways, and control system require power, compressed air, and data connections, which are routed into the chamber through dedicated sealed electrical feedthrough plates or corrugated-tube interfaces.
An auxiliary chamber is connected to the main chamber. Chips, waste material, or finished parts generated during machining can be transferred from the main chamber to the auxiliary chamber. In the auxiliary chamber, a precision balance is used to weigh materials in order to calculate material utilization, record finished-part weight, or prepare raw materials for the next process step.
By seamlessly combining inert-atmosphere protection, precision manufacturing, and quantitative analysis, this system represents a high-end and sophisticated glovebox-based solution for advanced applications.
Factory Price, Hige Quality
Description
Detailed product specifications and configuration diagram:
https://docs.google.com/spreadsheets/d/1LC8lxWBvs2DKSWeHI2xtcMrM3cCXHyb3SZSBFZlCAPc/edit?usp=sharing
Why Choose Us
When you select Etelux Solutions as your technology provider, you'll be placing your Glovebox& Vacuum Coating Equipment infrastructure in the hands of experienced, trained professionals. We take a different approach and the results are clear. People love our team and the services we provide.
Rich Glove Box Experience
We have more than 16 years of glove box manufacturing experience and have been awarded 35 technical patents.
Strong Research & Development Team
Our R & D team is committed to innovative technology. Through comprehensive international technical exchange & collaboration and through continuous application of cutting edge engineering and manufacturing techniques we create “state-of-the-art” products and customized solutions to serve the diverse needs of our client base.
Strict Quality Control Standards
We have deployed an ERP system that vigorously and systematically controls, tracks, and monitors the fulfilment process from placement of an order through design, manufacture delivery, installation & commissioning, and post-sale service.
Advanced Production Equipment
Gantry Machining Centers, CNC Turning Centers, Welding Robots, CNC Press Brake, Laser Cutting Machine and Helium Mass Spectrometer leak detection are among the equipment we use every day to produce our glove boxes. These facilities and equipment not only ensure the consistency of the products, but they also enable us to shorten the prototyping cycle of new product R & D and product customization.
Client Service
The key to our client service is our seamless integration of deep industry and functional expertise with tools and capabilities to support execution and make change happen—on a global scale.
Related products
Copper-tube temperature control unit (for 1200 Lab glovebox)
A fluid circulation circuit formed by copper tubing is embedded in the inner wall of the glovebox. Using an external temperature-controlled circulator, the heat-transfer fluid is heated or cooled to a setpoint temperature and then pumped through pipelines into the copper-tube network integrated inside the glovebox. By exchanging heat with the metal panels or internal modules, the copper tubing enables precise local heating and cooling of specific zones inside the chamber, thereby achieving accurate temperature control of the core working area.
An integrated safe power supply provides standard electrical outlets inside the glovebox for devices such as magnetic stirrers, sensors, and small instruments, greatly facilitating internal operations.
In this way, the system simultaneously addresses two key requirements: atmosphere protection and precise temperature control, while maintaining very smooth and user-friendly operation. It is a high-end, fully customized workstation designed for advanced scientific research and fine chemical processing, offering superior experimental conditions for handling sensitive materials.
Integrated Tube Furnace Single-Sided Dual-Station Glove Box
The Etelux integrated tube-furnace single-side dual-station glove box combines a high-temperature tube furnace with a fully sealed inert atmosphere workstation. Samples can be loaded, heated and cooled along one continuous line without leaving the protected environment. The dual glove ports allow two operators to work at the same time, improving efficiency for new-materials R&D and small-scale preparation. This configuration is ideal for solid-state battery materials, functional ceramics, catalyst powders and other air-sensitive samples that require precise thermal treatment under controlled atmosphere.
