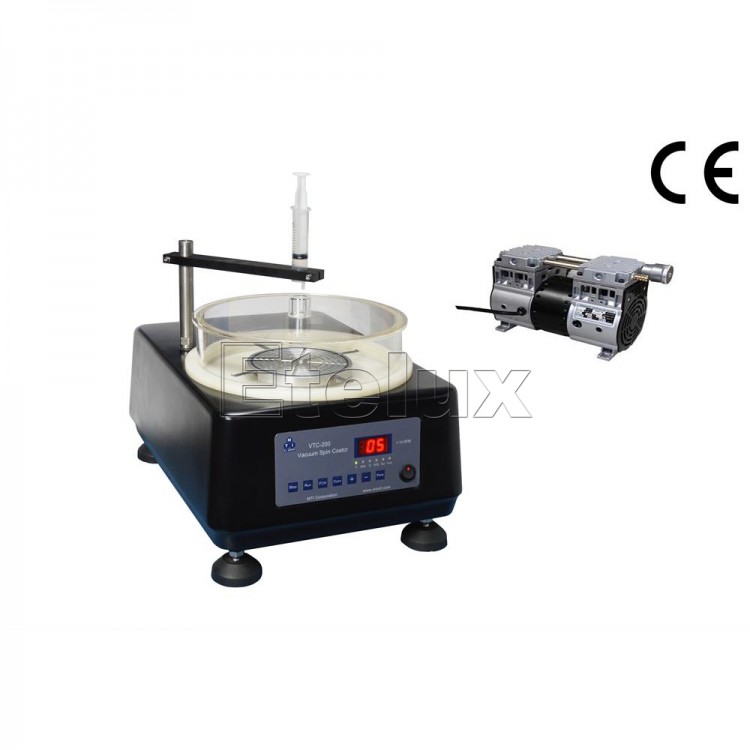

VTC-200 Vacuum Rotary Coating Machine
VTC-200 vacuum rotary film coating machine is mainly used for thin film formation in the laboratories of universities, research institutes. This machine utilizes high-speed rotation to evenly coat materials such as colloids and solutions with large viscosity coefficients on the surface of the sample.
Factory Price, Hige Quality
Description
| Features |
- Two-stage program controls speed.
- The sample is fixed by vacuum adsorption, which is easy to operate.
- Using cast aluminum structure, stable operation and low noise.
| Technical Parameters | |||
| Installation conditions | This equipment is required to be used at an altitude below 1000m, temperature 25 ℃ ± 15 ℃, humidity 55% Rh ± 10% Rh. | ||
| H2O | Equipment equipped with water inlet and outlet | ||
| Electricity | AC220V 50Hz，Must be well grounded | ||
| Gas | No need | ||
| Work Platform | Size 600mm×600mm×700mm，23.6inch x23.6inch x 27.6 inch; Load capacity over 50kg | ||
| Ventilation | Need | ||
| power | 200W | ||
| Rotating speed | 500rpm-6000rpm | ||
| Time | 1s-60s | ||
| Vacuum pump flow rate | > 60L/min | ||
| Size | 500mm×400mm×400mm; 19.7 inch x 15.7 inchx 15.7 inch | ||
| Weight | 30kg | ||
| Optional accessories | Filter (for vacuum pump) | ||
| Standard accessories | 1 | Vacuum Sucker | 1 piece |
| 2 | Dropper | 1 piece | |
| 3 | Oil-free vacuum pump | 1 piece | |
