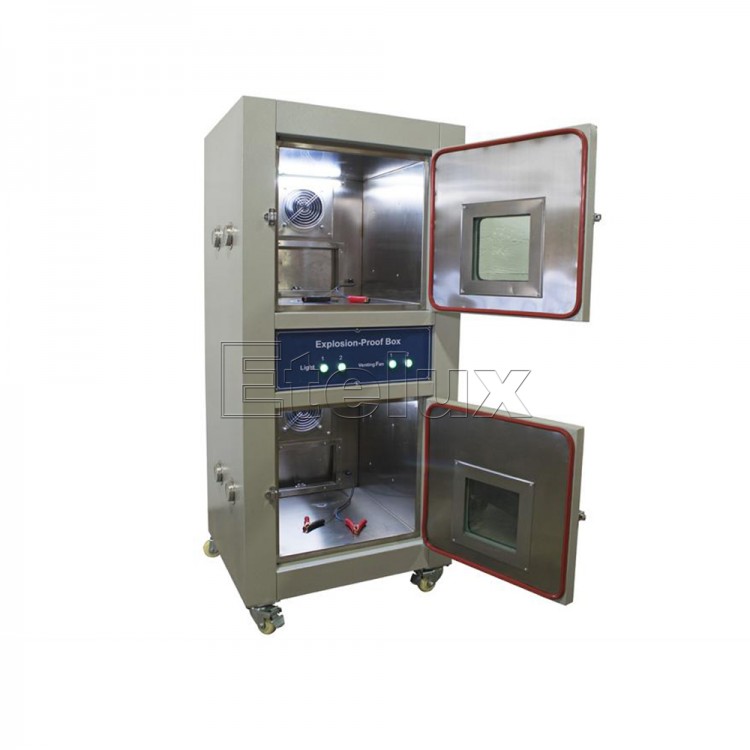

MSK-TE903 Battery Overcharge Overdischarge Explosion-proof Box
product description:
MSK-TE903 explosion-proof box can be used for lithium-ion battery over-charge and over-discharge testing and storage to prevent unnecessary damage caused by battery burning or explosion. The equipment adopts metal frame design, double-layer sheet metal structure, strong texture and good explosion-proof effect.
Factory Price, Hige Quality
Description
Features:
The box is divided into two floors, one on each floor is an explosion-proof chamber;
Each explosion-proof chamber is designed with an explosion-proof pressure relief port and explosion-proof glass observation window;
The bottom of the explosion-proof chamber is covered with insulating rubber to prevent the battery from being shorted;
A high-brightness LED energy-saving explosion-proof lamp is installed in the box, and the illumination angle of the lamp can be adjusted by 90 °;
A powerful exhaust fan is installed at the rear of the box, which can be manually started to discharge smoke outside the box;
Each explosion-proof chamber is designed with two test holes, which can pass through test lines or make up air;
Each explosion-proof chamber is equipped with a test cable with a length of 3m as a standard, which can withstand a maximum current of 30A;
Easy to operate, safe and reliable, beautiful appearance;
Technical Parameters
| power | Single-phase voltage 100 ~ 240 VAC ± 10%, frequency 50Hz / 60Hz, power 100W |
| Explosion-proof chamber | L500*W500*H500mm，L19.7*W19.7*H19.7inch;there are two floors, one above and one below |
| Main box size | L700mm*W630mm*H1800mm; L27.6*W24.8*H70.9inch |
| Box material | The inner layer is made of brushed stainless steel, and the outer layer is cold-rolled steel plate. |
| Illumination | Explosion-proof LED lamp with 90 ° adjustable illumination angle |
| Test load | Standard distribution line test current up to 30A |
| Auxiliary function | Explosion-proof pressure relief port, powerful exhaust fan, make-up port, removable foot |
| Net weight | About 200kg |
