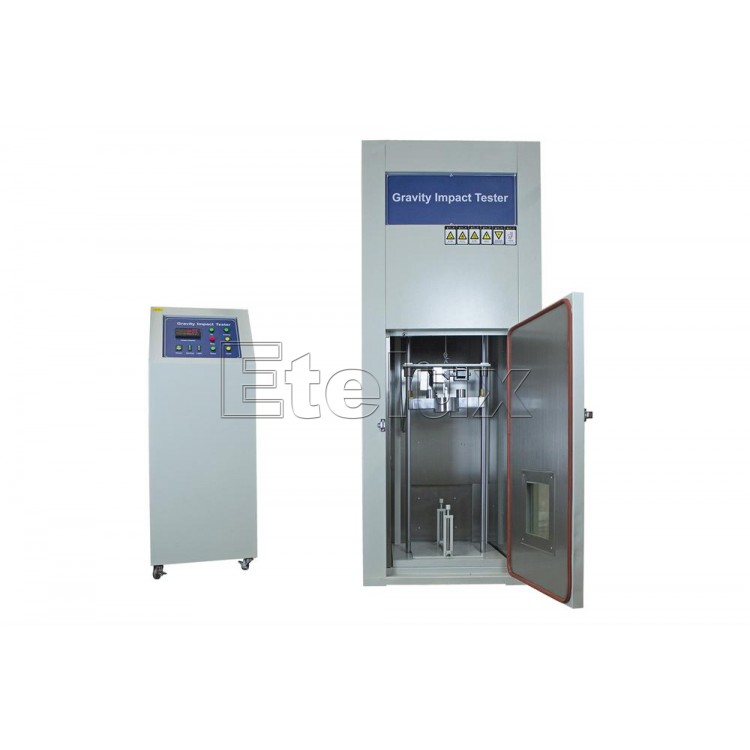

MSK-TE902 Battery Impact Tester
Product introduction:
The MSK-TE902 battery heavy object impact tester is a device that can be applied to the safety test of lithium-ion batteries and battery packs. It can simulate the safety performance of the battery when the battery is impacted by a heavy object. A 10Kg or 9.1Kg weight is designed to fall freely at a height of 1m or 610mm, and hit a metal rod with a diameter of 15.8mm (5/8 inches). Press the battery cell sample vertically below the metal rod.
Factory Price, Hige Quality
Description
Features:
Applicable standards GB31241-2014, UN38.3, GB / T18287-2000, etc .;
Automatic testing can be performed according to various test standards selected on the HMI;
Compatible with two weights and various height test standards. The weight of the weight is adjusted by weights, and the height can be set freely;
Electric hook to ensure safety, mechanical safety lock is designed for long-term maintenance operation;
The worm gear reducer motor drives the lifting weight block, and the motor will lower and lock itself when the power is off;
Test box double-layer explosion-proof reinforced sheet metal, design explosion-proof pressure relief port, explosion-proof laminated glass observation window, built-in lighting;
Selection of high-quality electrical components to ensure work reliability, with the function of switching between local and remote operation;
Technical Parameters
| power | Single-phase voltage 220VAC ± 10% (110VAC can be customized), frequency 50Hz / 60Hz, power 1KW |
| Use environment | Recommended ambient temperature 25 ± 3 ℃, humidity 30 ~ 90RH (%), no vibration and electromagnetic interference |
| Testing items | Heavy object impact test |
| Testing object | Button, cylindrical, flexible packaging, square lithium battery and various lithium battery packs |
| Applicable standards | GB31241-2014、UN38.3、GB/T18287-2000 and so on |
| Weight | 10Kg or 9.1Kg，Adjustable weights |
| Impact height | Max. 1000mm，Freely settable |
| Observation window | L382*W332mm, L15*W13inch |
| Auxiliary function | Explosion-proof pressure relief port, built-in lighting, optional fire extinguisher, video monitoring function |
| Work space | L300mm*W250mm*H1000mm; L11.8*W9.8*39.4inch |
| Installation size | W800mm*D700mm*H1815mm;W31.5*D27.6*H71.4inch |
