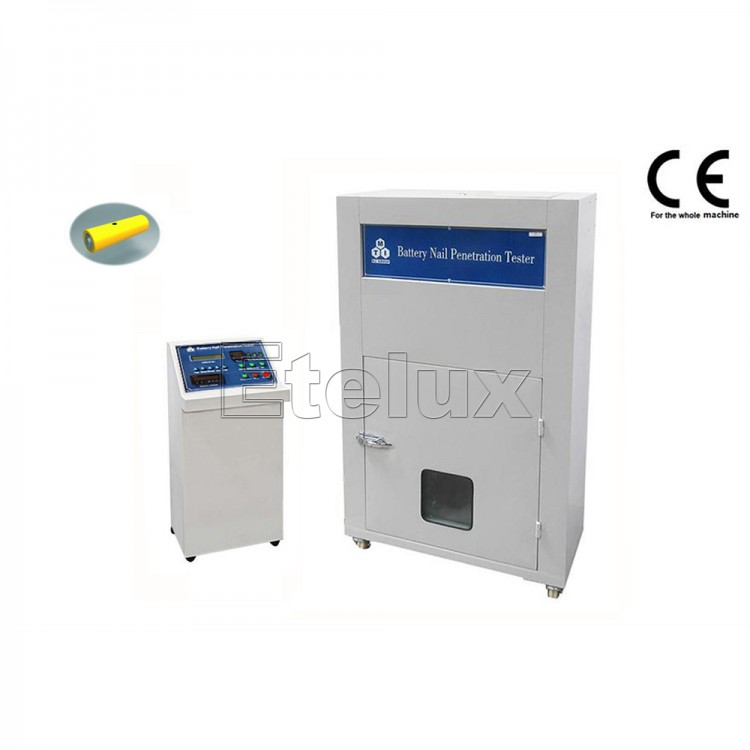

MSK-TE9002 Needle Punching Tester
Product introduction:
MSK-TE9002 Battery Needle Puncture Tester is a device that can be applied to the safety test of lithium ion batteries and battery packs. It can realize the safety performance of the battery when the battery is punctured by a steel needle at normal temperature. It can be monitored during the test Battery surface temperature.
Factory Price, Hige Quality
Description
Features:
Applicable standards GB / T741-2014, QC744 / 743-2008, etc .;
According to different test objects, different diameter lancets can be selected for replacement;
Needle pressure and speed can be adjusted by adjusting precision pressure regulating valve and throttle valve respectively;
Test box double-layer explosion-proof reinforced sheet metal, design explosion-proof pressure relief port, double-hole test air supply vent, explosion-proof laminated glass observation window, built-in lighting;
Selection of high-quality electrical components to ensure work reliability, with the function of switching between local and remote operation;
Technical Parameters
| power | Single-phase voltage 100 ~ 240VAC, frequency 50Hz / 60Hz, power 100W |
| Use environment | Recommended ambient temperature 25 ± 3 ℃, humidity 30 ~ 90RH (%), no vibration and electromagnetic interference |
| Gas source | 0.5-0.8Mpa compressed air |
| Test items | Needle test |
| Test object | Button, cylindrical, flexible packaging, square lithium battery and various lithium battery packs |
| Applicable standards | GB/T741-2014、QC744/743-2008 and so on |
| Acupuncture pressure | Max. 200Kgf |
| Acupuncture speed | 10~40mm/s |
| Acupuncture stroke | Max. 200mm |
| Positioning accuracy | ±0.1mm |
| Steel pin diameter | Φ3、Φ4、Φ5、Φ6、Φ8，Can be customized |
| Observation window | L150mm*W150mm, L5.9*W5.9inch; Explosion-proof laminated glass |
| Auxiliary function | Explosion-proof pressure relief port, built-in lighting, two test air supply vents, optional fire extinguisher, video monitoring function |
| Workspace | L200mm×W200mm×H200mm; L7.9*W7.9*H7.9inch |
| Installation size | L1070mm×W1070mm×H1550mm; L42.1*W42.1*H61inch |
| Weight | About 180Kg |
