Horizontal Planetary Mix
Product introduction:

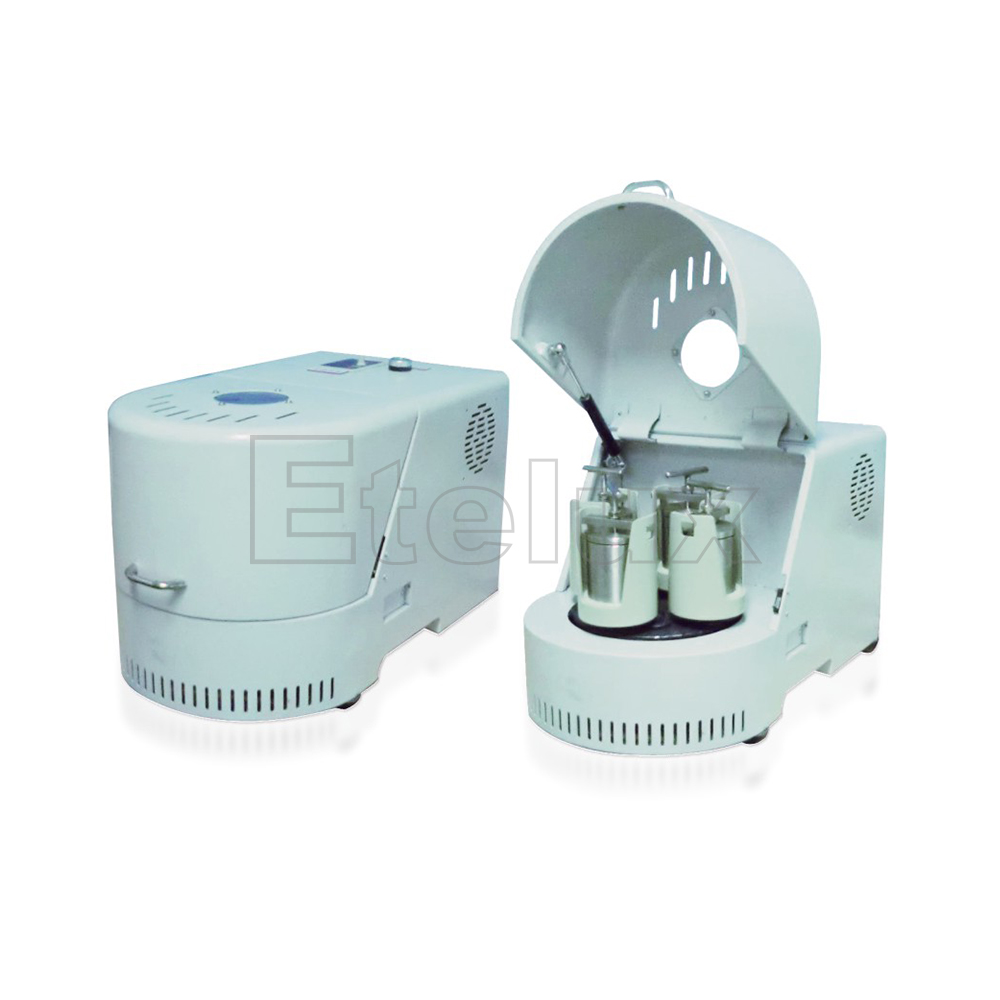

Horizontal planetary mixing SFM series planetary ball mill is equipped with four mixing tanks on a turntable. When the turntable rotates, the central axis of the mixing tank performs planetary movement, and the grinding balls in the tank are ground and milled at high speed Mix the samples. The product can be pulverized and mixed with two methods, dry and wet, with different particle sizes and different materials. The smallest particle size of the ground product can be reached (1.0 × 10-4mm). Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments.
Factory Price, Hige Quality
Description
Features:
SFM series planetary ball mill is an indispensable device for mixing, fine grinding, sample preparation, new product development and small batch production of high-tech materials;
This product is small in size, full in function, high in efficiency and low in noise. It is an ideal equipment for scientific research units, universities, and enterprise laboratories to obtain research samples (four samples can be obtained at the same time per experiment). It is equipped with a vacuum mixing tank. , Can grind samples under vacuum;
Technical Parameters
| Rated voltage | AC 220V |
| Rated power | 750W |
| Speed mode | PID no static difference speed regulation |
| Rotation mode | Belt drive |
| Rated speed | Stepless speed regulation |
| Maximum rotating speed | Revolution (large disk): 290 revolutions / min ± 10%, rotation (ball mill tank) 580 revolutions / min ± 10% |
| Dimensions | 450×700×550mm; 17.7*27.6*21.7inch |
| New weight | 40Kg |
| Standard accessories | V-shaped bracket, transmission belt, tightening wrench |
| Optional accessories | Various mixing tanks can be customized according to customer needs
Material of mixing tank: stainless steel, agate, ceramic, nylon, polyurethane, PTFE, hard alloy Mixing tank specifications (approx.): 100ml, 250ml, 500ml, Teflon mixing tank (400ml) Grinding ball specifications: Φ6, Φ10, Φ12, Φ15, Φ20 Notes for agate cans: Agate cans are made of natural mineral materials instead of artificial synthesis, which is a non-renewable resource. Due to many factors such as the origin of minerals, the texture of the mineral itself, and the reduction of mineral resources, our agate cans are promised to be used normally but cannot guarantee the appearance of all agate products. Customers who are mindful should purchase carefully or choose other materials (stainless steel Nylon, corundum) ball mill tank |
| Precautions | When using this planetary ball mill, 4 or 2 grinding tanks of the same weight should be used symmetrically. If working with only one ball mill tank, a tank of the same weight should be provided in a symmetrical position. Otherwise, the eccentric force may cause damage to the machine. |
| Quality Certification | CE Certified |
| Tips | For different materials customers need to study different processes (speed, time, grinding ball and grinding tank material and the ratio of grinding ball size) to obtain the ideal experimental results |
