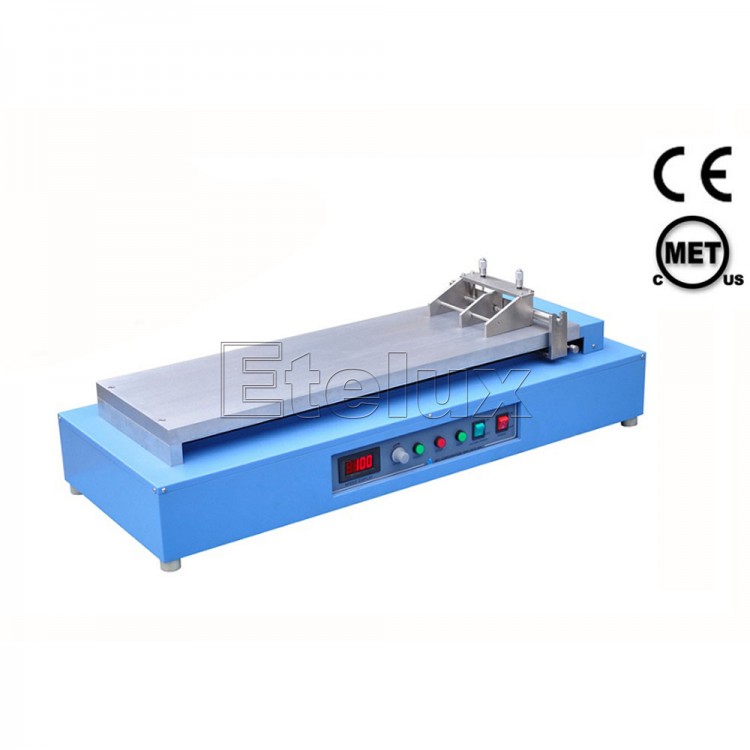

MSK-AFA-L800 800mm Cast Coating Machine (for Making 18650 Cylindrical Batteries)
Product introduction:
MSK-AFA-L800 is a 800mm long cast coater. It contains a vacuum chuck and an oil-free vacuum pump. It can be used to make long thick films with a micron adjustable blade. With a unique automatic propulsion device, it can produce a smooth coating on any material within a range of 180mm width and 600 length. It is an ideal tool for low-cost research and development of 18650 battery electrode materials.
Factory Price, Hige Quality
Description
Features:
Application speed: 0-100 mm / s adjustable;
Vacuum chuck: 600mm long x 260mm wide, can firmly adsorb the substrate;
The horizontal push rod is used with a micron scraper;
Adjustable limit switch can set coating stroke 10-800mm;
Contains a 180mm-wide micron-level scraper, which can form a film of 250x500mm;
Technical Parameters
| Coating power | 110 — 220 V AC ( 50/60Hz) 150W |
| Stroke speed | 0 – 80mm /sound adjustable |
| Stroke length | 10 – 800mm |
| Vacuum chuck size | 600mm L x 260mm W |
| Vacuum pump | 120L/m Oil-free pump |
| Film Making Machine | Including 180mm wide micron-level adjustable scraper (other sizes of scraper to select ) |
| Film forming area | 180mm W x 600 mm L ; 7 inch (W)x 23.6 inch (L) |
| Film thickness accuracy | +/- 0.01 mm |
| Dimensions | 960L x 370W x 240 H, mm |
| Net weight | 40 Kg |
| Optional | An optional vacuum mixer can be used to vacuum stir the slurry to be coated to achieve uniformity during coating. An optional viscometer can be used to lock the viscosity of the slurry used for optimal coating, thereby maintaining each test coating smoothness over time |
| Warranty | One year warranty and lifetime maintenance |
| Quality Certification | CE certified |
