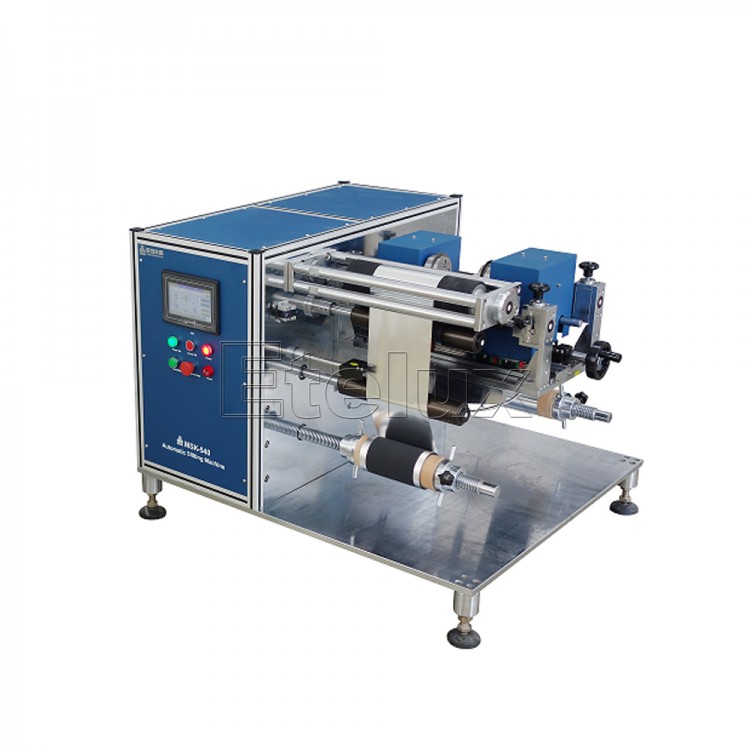

MSK-540 Automatic Trimming Machine
Product introduction:
MSK-540 automatic trimming machine can realize continuous precision trimming of rolled materials with a width of less than 300mm. The width can be adjusted steplessly, especially suitable for single precision slitting occasions where the width often needs to be adjusted. The equipment can be widely used in lithium battery, metal foil, optical film and other functional film industries.
Factory Price, Hige Quality
Description
Features:
Single stand structure, precision slitting knife holder;
Upper and lower circular knife structure, stepless width adjustable steplessly, digital display of width parameters;
Ultrafine tungsten steel blade with good cutting quality and long service life;
The amount of knife is adjustable, and the ratio of the knife speed to the linear speed of the material is adjustable;
By adjusting the inlet and outlet angles, it can adapt to the cutting of different materials and thickness values;
The winding tension is automatically controlled, and the upper and lower shafts are independently adjustable within 50N;
PLC control, HMI operation, convenient and easy to use;
Technical Parameters
| Power | Single-phase voltage 220VAC ± 10% (110VAC can be customized), frequency 50Hz / 60Hz, power 1KW |
| Cutting method | Upper and lower round knife |
| Roll surface width | 350mm |
| Trim width | 30～300mm，Digital display, stepless adjustable |
| Slitting accuracy | ±0.1mm |
| Cut thickness | 10～300μm |
| Glitch condition | ≤25µm |
| Slitting speed | 0～5m/min |
| Control tension | 50N Internal setting, automatic control |
| Unwinding diameter | 2.3 inch, top-mounted mechanical clamping |
| Unwinding diameter | 250mm |
| Unwinding | Automatic unwinding correction, accuracy ±0.5mm |
| Installation size | L1000mm*W850mm*H800mm; L 39.4x W33.5x H31.5 inch |
| Weight | About 200Kg |
