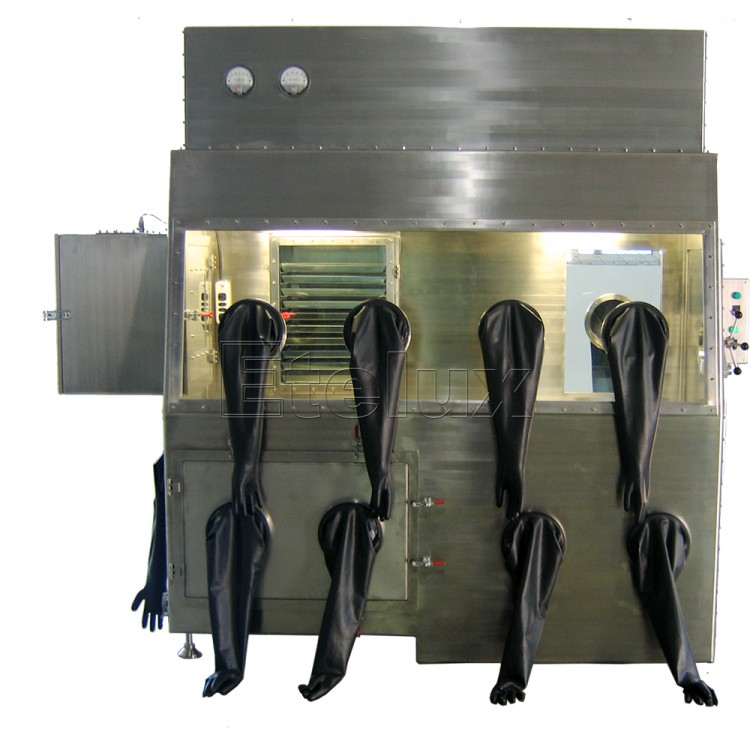

Etelux Nuclear Industry Glove Box

Description:

The operation needs to be isolated from the air for experiments, and some reactions need to be performed in an inert gas such as argon. Use open (unshielded) radioactive sources, protected with lead and lead glass. Protect experimenters from toxic chemicals. It is more isolated than a fume hood, but it is more inconvenient to operate. Perform experiments that may cause serious biological hazards.

Technical Parameters:

Index: H2O ≤1ppm, O2 ≤1ppm;

Leakage rate: ≤0.01vol% / h;

Main antechamber: non-standard customized, design 2 stations;

Glove port: 8, hard aluminum alloy / polyformaldehyde;

Gloves: North America, glove diameter 8 inches, contained lead gloves;

Antechamber: 1, 400mm × 350mm × 350mm (L × W × H), 55.1 inch x 13.8 inch x 13.8 inch; vacuum degree ≤-0.1MPa;

Control system: Siemens micro system controller, touch screen operation control;

Operation interface: equipped with Siemens 7 ”color touch screen and Chinese interface to realize man-machine dialogue and easy operation;

Regeneration process: full name of automatic valve control, safe and reliable;

Vacuum pump: Atlas GVD-12 or Edward RV12;

Circulating fan: high-speed variable frequency fan, flow rate 0-100m3 / h, microprocessor-controlled, pressure-tested stainless steel device.

Single purification column: German BASF deoxidation material, American UOP high-efficiency water absorption material;

Purge valve: Burkert, Germany, fully automatic electric valve, modular design;

Filter: High-efficiency filter using a 0.3 micron pore size filter that complies with HEPA standards;

Solvent column: It absorbs the volatilized solvents and high-efficiency activated carbon, and can be replaced according to the use situation (or the adsorbent material can be adsorbed according to the different solvents).
